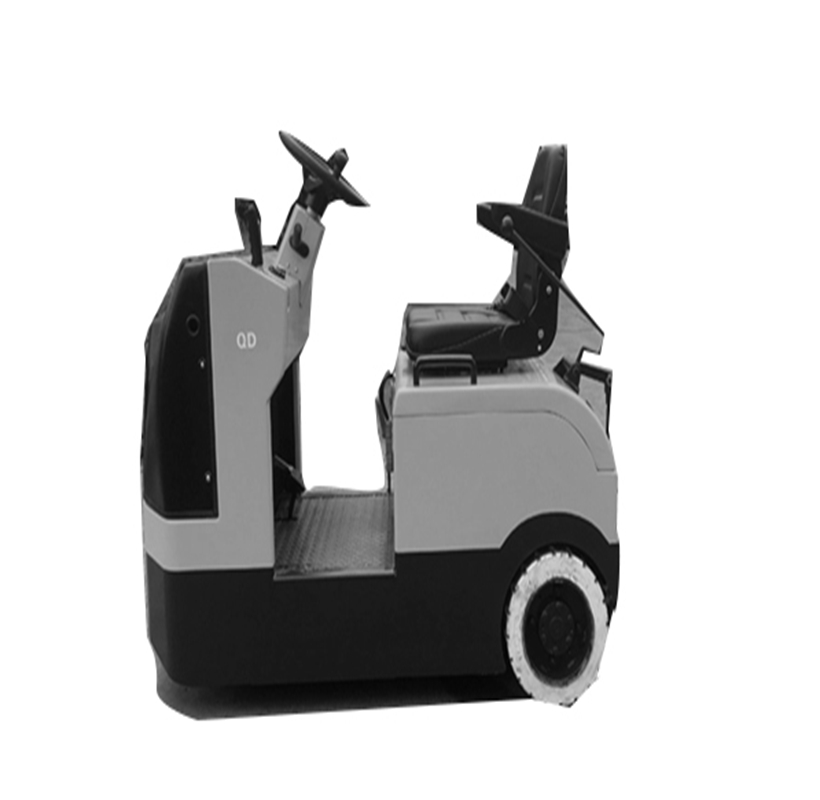

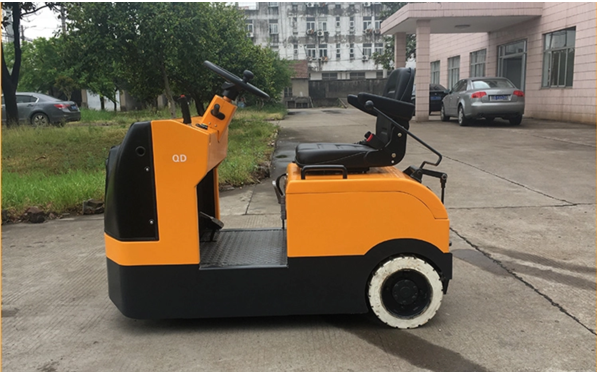

QD 20/30 Tow Tractor
Item No.:QD
Description
Item specifics
This QD-30BH uses the same battery than 24-volt stand-up tractors and, as a result, you can upgrade your fleet of tractors at a minimal cost. It is updated version from QD-30B with rear driven system. Safe automotive controls and steering wheel eliminate hand injuries and carpal tunnel syndrome hazards associated with twist grip controls.
| Model No. | QD-20BH | QD-30BH | QD-30BH(AC) ** | ||
| Towing Capacity | kg | 2000 | 3000 | 3000 | |
| Driving Motor | W | DC-24V-2000W | DC-24V-2000W | DC-24V-2200W AC | |
| Battery | D-240A 24V | D-300A 24V | D-300A 36V | ||
| Driving Speed | km/h | 0~6.5 | 0~6.5 | 0~7.5 | |
| Controller Type | CURTIS solid-state speed | CURTIS solid-state speed | C3-250A | ||
| Working Time | Hours | 6 | 6 | 6 | |
| Min. Turning Radius | mm | R | 1000 | 1850 | 1850 |
| Operation Type | Rider seated | Rider seated | Rider seated | ||
| Min.under-clearance | mm | 85 | 85 | 85 | |
| Steering Wheel | mm | White Rubber Φ267x127 | White Rubber Φ267x76 | White Rubber Φ267x76 | |
| Drive Wheel | mm | Φ330x165 | Φ330x114 | Φ330x114 | |
| Overall length | mm | L | 1490 | 1700 | 1700 |
| Overall width | mm | W | 820 | 800 | 800 |
| Overall height | mm | H | 1350 | 1240 | 1240 |
| Service Weight | kg | 1150 | 1450 | 1580 | |
