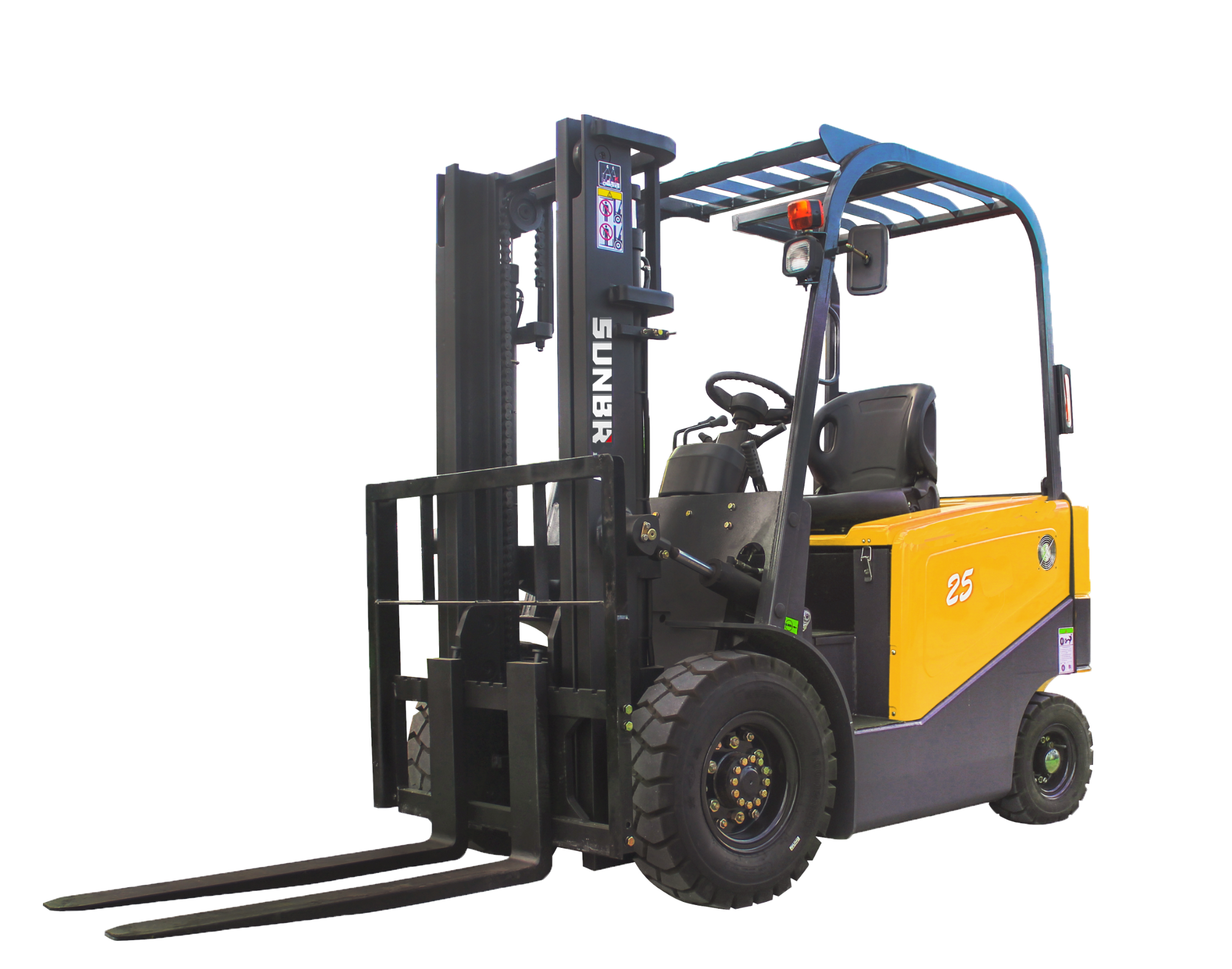

Battery powered forklift

Item No.:
1.5T/2.0T/2.5T/3.0T/3.0T and so on battery forklift
Description Item specifics

Product Features

1.Equipped with original imported American Curtis electric control system.

2.High voltage and large capacity battery can supply the forklift with strong power.

3.Equipped with famous brand parts, like Shimadzu pump and valve, Eaton pipe, Nok hydraulic cylinder seals, Toyota seat with
safety belt,and so on.

4.Imported brand Accelerator and Power Connector.

5.Dynamic load sensing priority steering system and efficient drive system(Advance H-Type remote drive unit make driving more
stable).

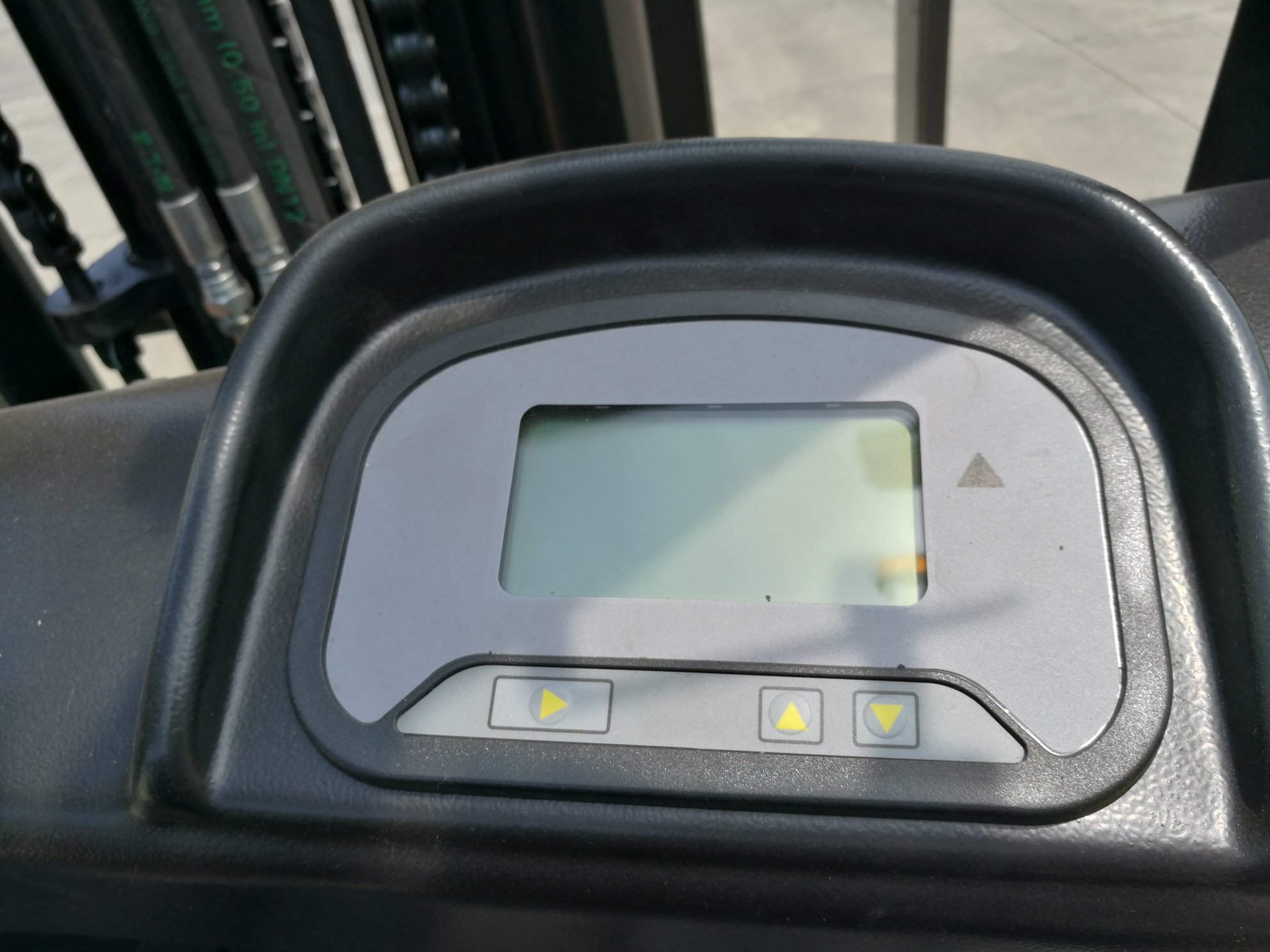

6.Fully enclosed instrument panel cover.

7.Battery side-take function.
Specifications of 3 ton electric forklift
Manufacturer


LTMG
Model


FB30
Load capacity

kg
3000
Load center

mm
500
Power unit


Battery
Operator type


Driver/seat
Tire type


Pneumatic
Wheel(x=driving)
Front/rear

2X/2
Max. lifting height

mm
3000
Free lift

mm
165
Fork size
L*W*T
mm
1070*125*45
Tilt range
Mast forward/backward
deg
6/12
Overall length(without fork)

mm
2510
Total width

mm
1225
Mast height (fork lowering)

mm
2075
Overall height fork raised
With backrest
mm
4250
Height to head guard

mm
2190
Turning raduis(outside)

mm
2140
Load distance

mm
480
Min. right angle stacking aisle
not add load length&clearence
mm
2625
Speed
Max Travelling full load
km/h
13.5

Max Travelling no load
km/h
15

Lifting full load
mm/s
240

Lifting no load
mm/s
450
Gradeability
full load
%
12.5
Truck weight(with standard battery)

kg
4660
Weight distribution
Full load front/rear
kg
6770/890

No load front/rear
kg
1885/2775
Tires
Number
front/rear
2/2

Model
front axle
28*9-15-12PR


rear axle
18*7-8-14PR
Wheelbase

mm
1600
Tread
Front/rear
mm
1000/950
Ground clearence
At lowest point(mast)
mm
140

Frame
mm
120
Brake
Service brake

Hydraulic-foot pedal

Parking brak

Mechanical-hand lever
Lead-Acid Battery
Voltage/capacity
V/AH
72/480
Lithium battery(optional)
Voltage/capacity
V/AH
76.8/315

Weight with box (standard)
kg
1220
Electric motor
AC Driving motor
kw
16.6

DC Hydraulic driving motor
kw
10

AC Hydraulic driving motor (as option)
kw
13.4
Control type

Driving AC , lifting DC



Driving AC , lifting AC(as option )

Operating pressure

kg/cm2
175
