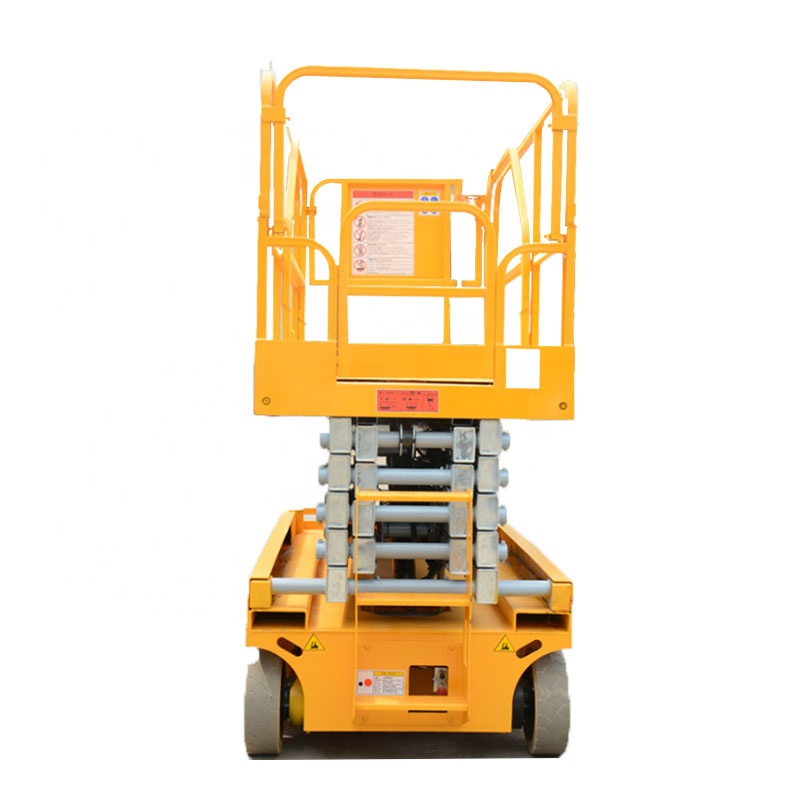

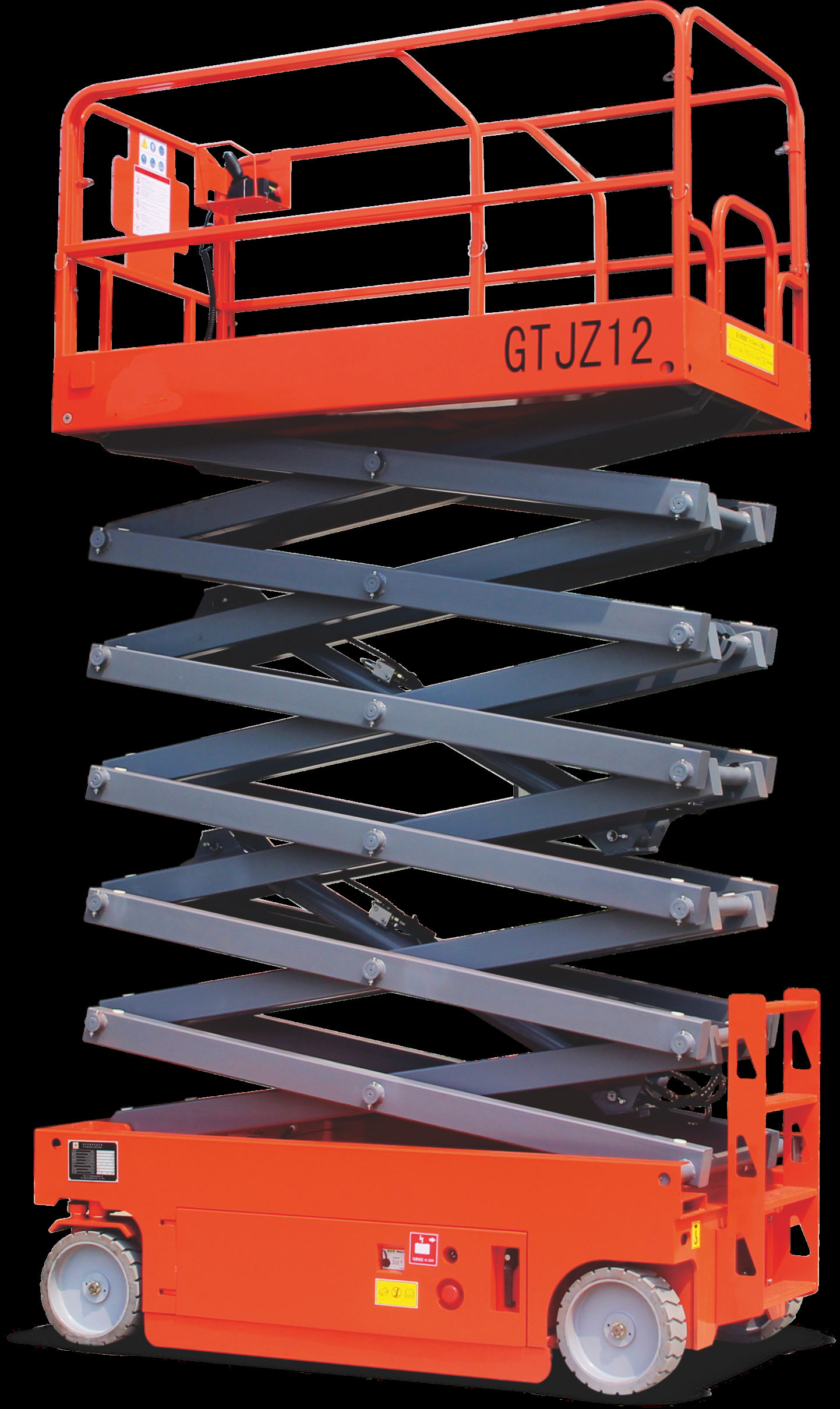

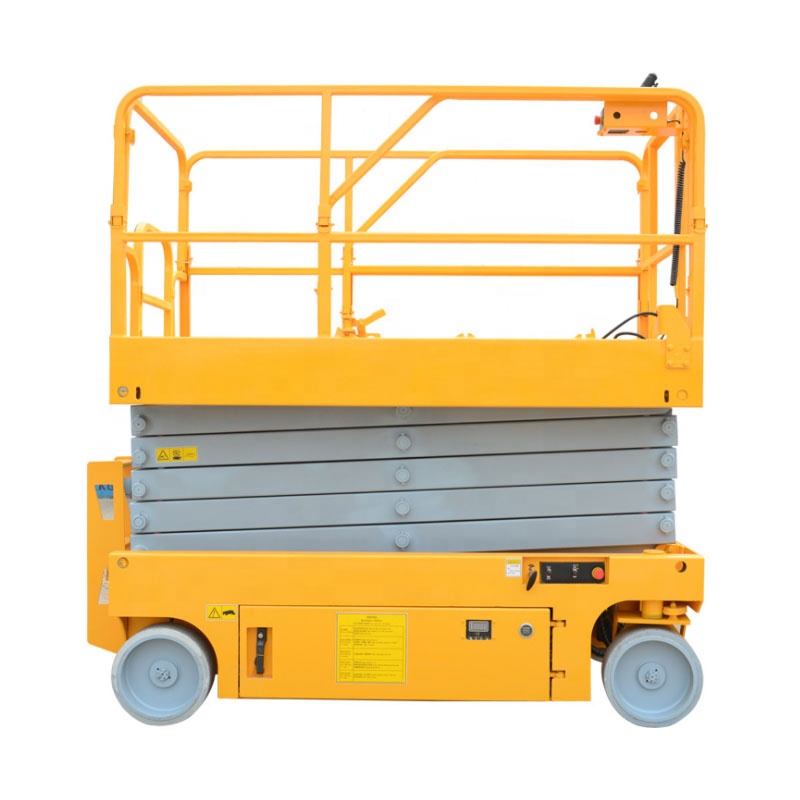

Self-propelled scissor lift table
Item No.:GTJZ
Electric Scissor Lift with 4m to 14m Workl Height
Description
Item specifics
Electric scissor aerial lift platform is the professional high-altitude operation equipment and widely used for the installations maintenance, high working capacity, most spacious platforms to load several people to work on, moved by tow or push, high strength steel material, going up and dropping down stably, operated easily and few faults.
Parameter
| Model | GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 | GTJZ14 |
| Platform height(m) | 5.8 | 8.1 | 10.2 | 11.95 | 13.75 |
| Working height(m) | 7.8 | 10.1 | 12.2 | 13.95 | 14.75 |
| Platform extension size(m) | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Load capacity/extension capacity(kg) | 230/110 | 230/110 | 320/110 | 320/110 | 230/110 |
Gradeability | 25% | 25% | 25% | 25% | 25% |
| Max allowable working angle(°) | 2/3 | 2/3 | 2/3 | 2/3 | 2/3 |
| Min turn radius(m) | 2.1 | 2.2 | 2.2 | 2.2 | 2.6 |
| Travel speed(stowed)(km/h) | 3.5 | 3.5 | 3.6 | 3.6 | 3.6 |
| Up/Down speed(m/s) | 0.18-0.25 | 0.18-0.25 | 0.18-0.25 | 0.18-0.25 | 0.18-0.25 |
| Overall size(L*W)(m)D/F | 1.82×0.76 | 2.48×1.15 | 2.48×1.15 | 2.48×1.15 | 2.83×1.25 |
| Overall height/side rail(m)C/E | 2.2/1084 | 2.32/1.82 | 2.45/1.95 | 2.57/2.07 | 2.6/2.1 |
| Platform size(L*W)(m) A×B | 1.65×0.75 | 2.32×1.13 | 2.32×1.13 | 2.32×1.13 | 2.68×1.13 |
| Ground clearance(stowed/raised)(m) | 0.1×0.02 | 0.1×0.02 | 0.1×0.02 | 0.1×0.02 | 0.1×0.02 |
| Driving wheel size(m) | 0.305×0.118 | 0.381×0.127 | 0.381×0.127 | 0.381×0.127 | 0.381×0.127 |
| Weight(kg) | 1500 | 2450 | 2710 | 2880 | 3150 |
| Lifting motor(V/kw) | 24/3.0 | 24/4.5 | 24/4.5 | 24/4.5 | 24/4.5 |
| Maintenance free battery(V/ah) | 4×6/225 | 4×6/225 | 4×6/240 | 4×12/300 | 4×6/300 |
| Battery charger(V/ah) | 24/30 | 24/30 | 24/30 | 24/30 | 24/30 |
