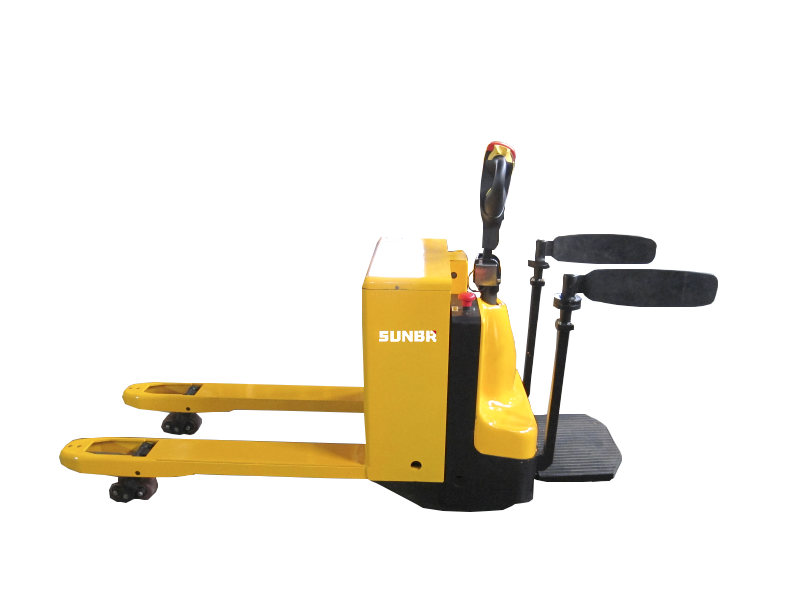

CBDN Electric Pallet trucks
Item No.:CBD
Easy to operate,Save cost，
Description
Item specifics
Slide rail lifting structure design, built to last.
3 shifts lowering speed for high efficiency.

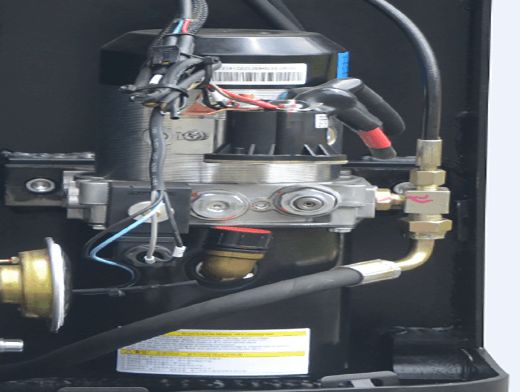

Lifting height limitation switch, automatic stop at top height for save energy and protect motor.

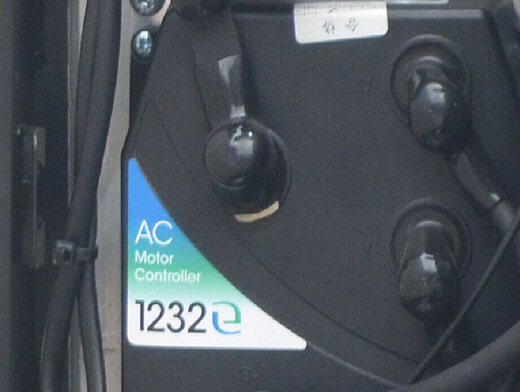

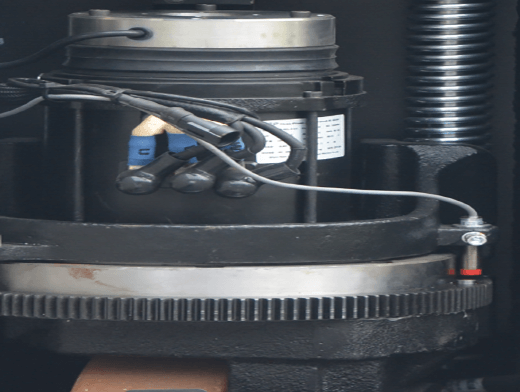

◆ Powerful AC drive motor
◆ Electric power steering
◆ Side pull battery replacement design

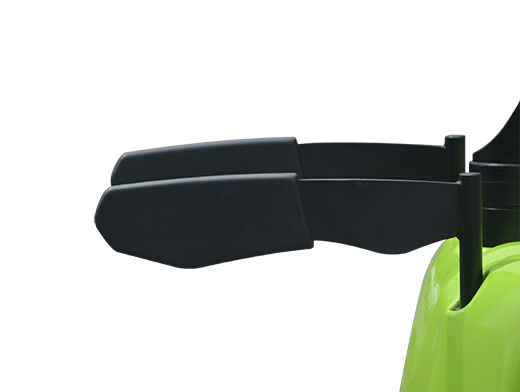

◆ Fold-able platform and protecting arms
◆ Metal Cover body ensure longer lifetime
| Model | CBDN20 | CBDN25 | |
| power type | Battery | ||
| Operation Type | Stand on | Stand on | |
| Rated Capacity | kg | 2000 | 2500 |
| Load Center C | mm | 600 | 600 |
| Front Overhang X | mm | 967 | 967 |
| Wheelbase Y | mm | 1520 | 1520 |
| Weight(with battery) | kg | 710 | 715 |
| Tire | Polyurethane | Polyurethane | |
| Tyre size, front | mm | φ230×75 | φ230×75 |
| Tyre size, rear | mm | φ80×70 | φ80×70 |
| Additional wheels | mm | φ130×55 | φ130×55 |
| Track width, rear (b11) | mm | 390/500 | 390/500 |
| Track width, front (b10) | mm | 498 | 512 |
| Max lifting height (h3) | mm | 200 | 200 |
| Total Height (h14) | mm | 1360 | 1360 |
| Fork ground clearance (h13) | mm | 85 | 85 |
| Overall Length (L1) | mm | 1980 | 1980 |
| Overall Width (b1) | mm | 730 | 730 |

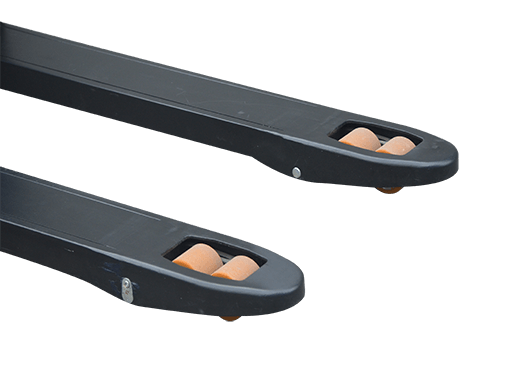

| fork size H/W/L | mm | 65/160/1200 | 65/160/1200 |
| Fork width (b5) | mm | 570/680 | 570/680 |
| Turning radius (wa) | mm | 1530 | 1530 |
| Travel Speed (laden/unladen) | km/h | 5/6 | 5/6 |
| lifting speed(laden/unladen) | mm/s | 25/30 | 25/30 |
| lowering speed(laden/unladen) | mm/s | 30/25 | 30/25 |
| Gradability(laden/unladen) | % | 6/15 | 6/15 |
| Drive motor | kw | 1.5 | 1.5 |
| Lift Motor | kw | 2.2 | 2.2 |
| Battery voltage | V | 24 | 24 |
| Battery capacity | Ah | 210 | 210 |
| Noise | dB | <70 | <70 |
