SA Hand Stacker
Item No.:CTY-SA
Description
Item specifics
Hand stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading and production areas.
Easy maintenance and low running costs.
| Model | CTY-SA1.0 | CTY-SA2.0 | CTY-SA3.0 |
| Rated lifting capacity(kg) | 1000 | 2000 | 3000 |
| Max.lifting height(mm) | 1600 | 1600 | 1600 |
| Lowerede height of forks(mm) | 85 | 85 | 110 |
| Fork length(mm) | 900 | 900 | 1000 |

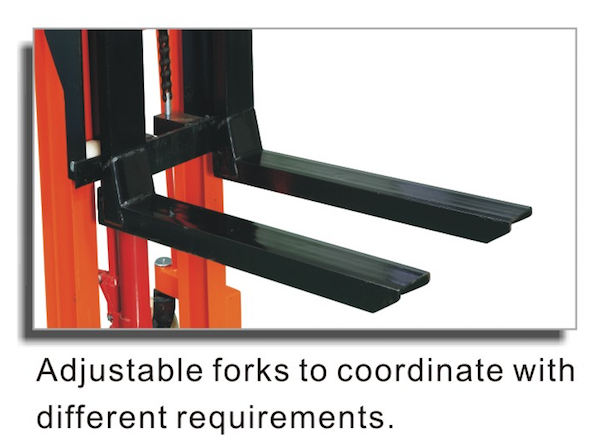

| Adjustable width fo forks(mm) | 210-560 | 250-580 | 290-580 |
| lifting speed(mm/s) | 20 | 14 | 10 |
| Lowering speed(mm/s) | controllable | controllable | controllable |
| Outer width of front legs(mm) | 750 | 760 | 760 |
| Operation power of crank(kg) | 24 | 32 | 40 |
Min.refuel volume for fuel tank(L) | 1.6 | 2.0 | 3.0 |
| Front wheel size(mm) | φ85×50 | φ85×50 | φ100×50 |
| Rear wheel size(mm) | φ180×50 | φ180×50 | φ180×50 |
| Overall size(mm) | 1360×755×2040 | 1420×760×2050 | 1580×800×2070 |
| Truck weigth(kg) | 115 | 180 | 280 |
