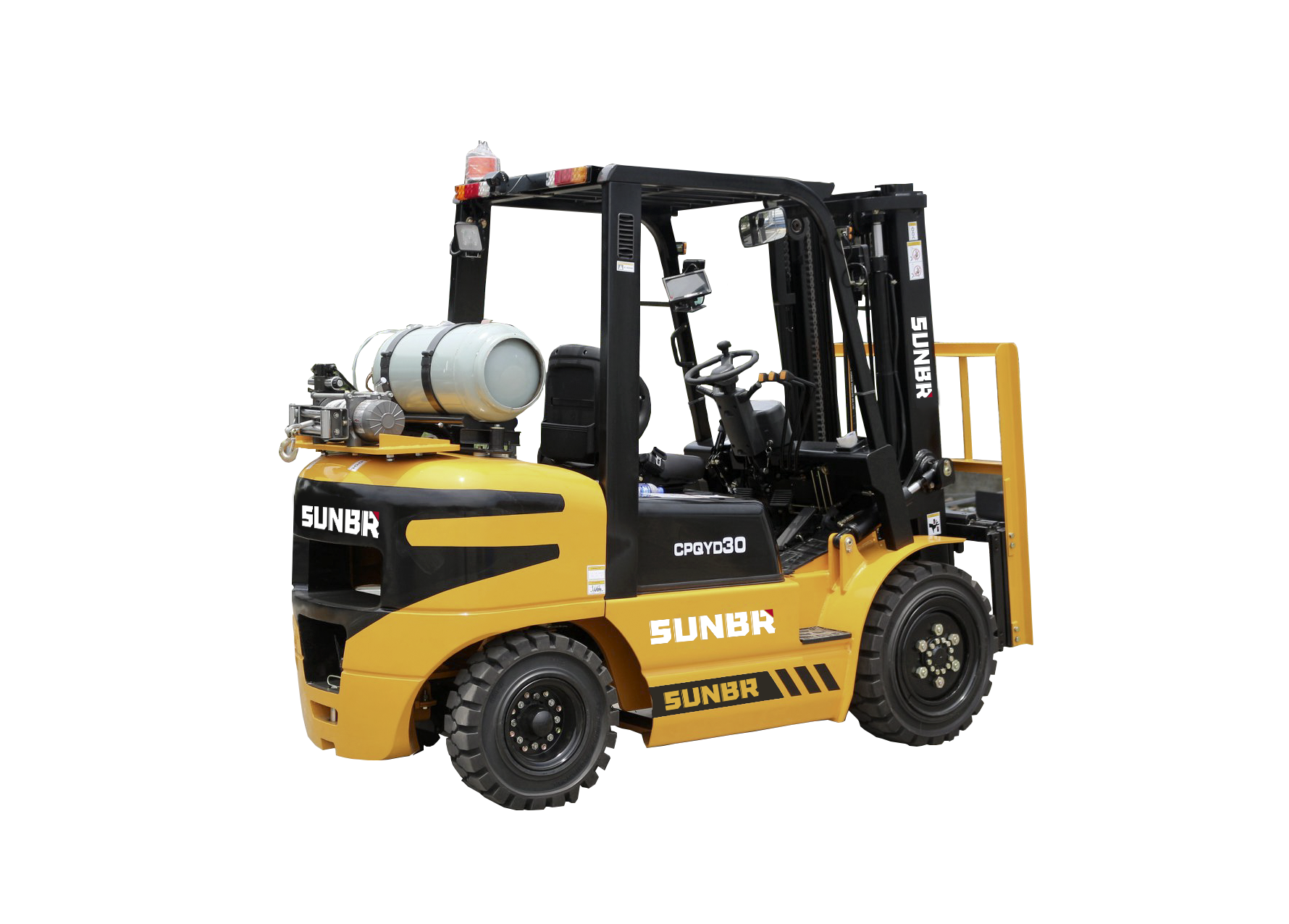

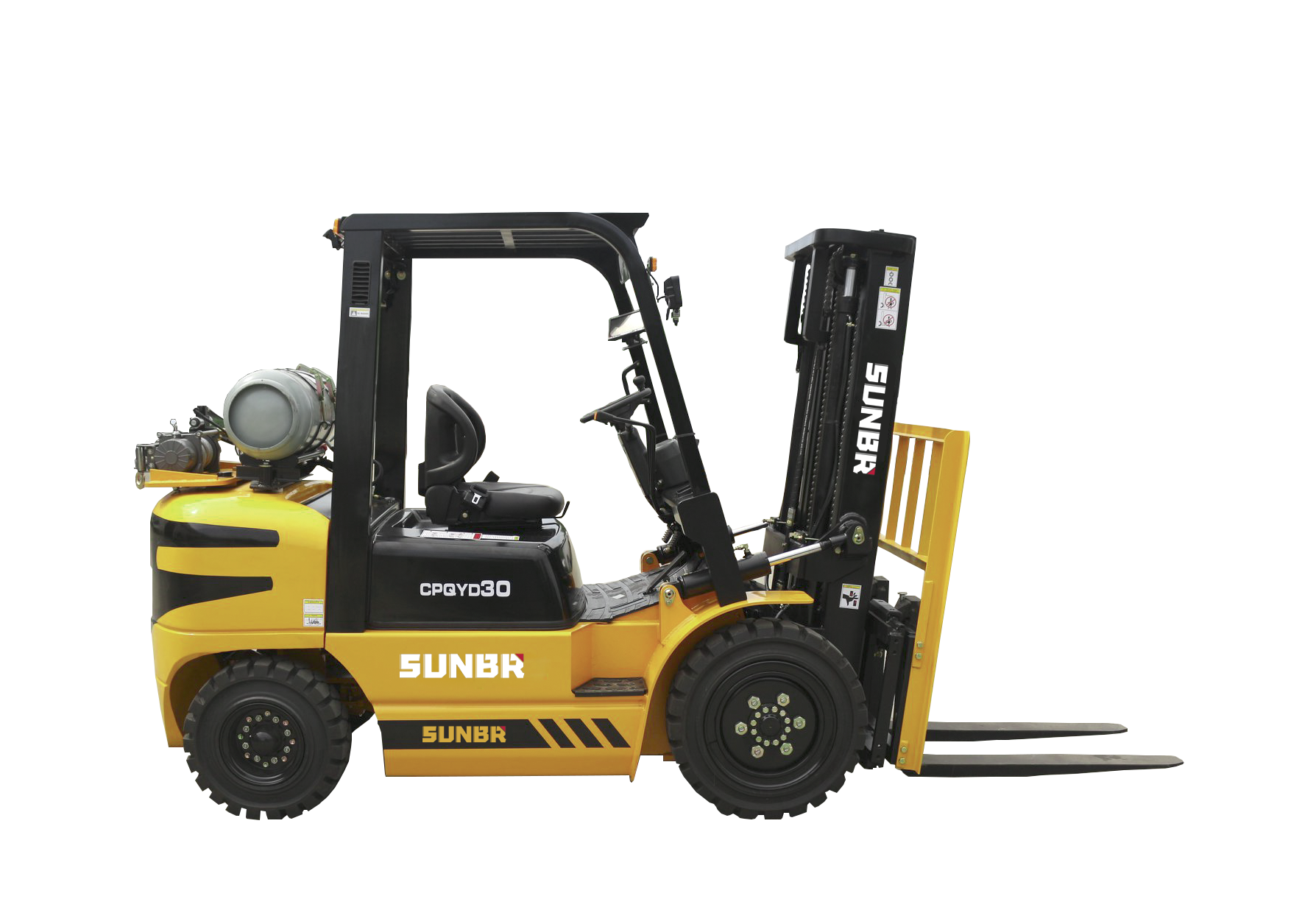

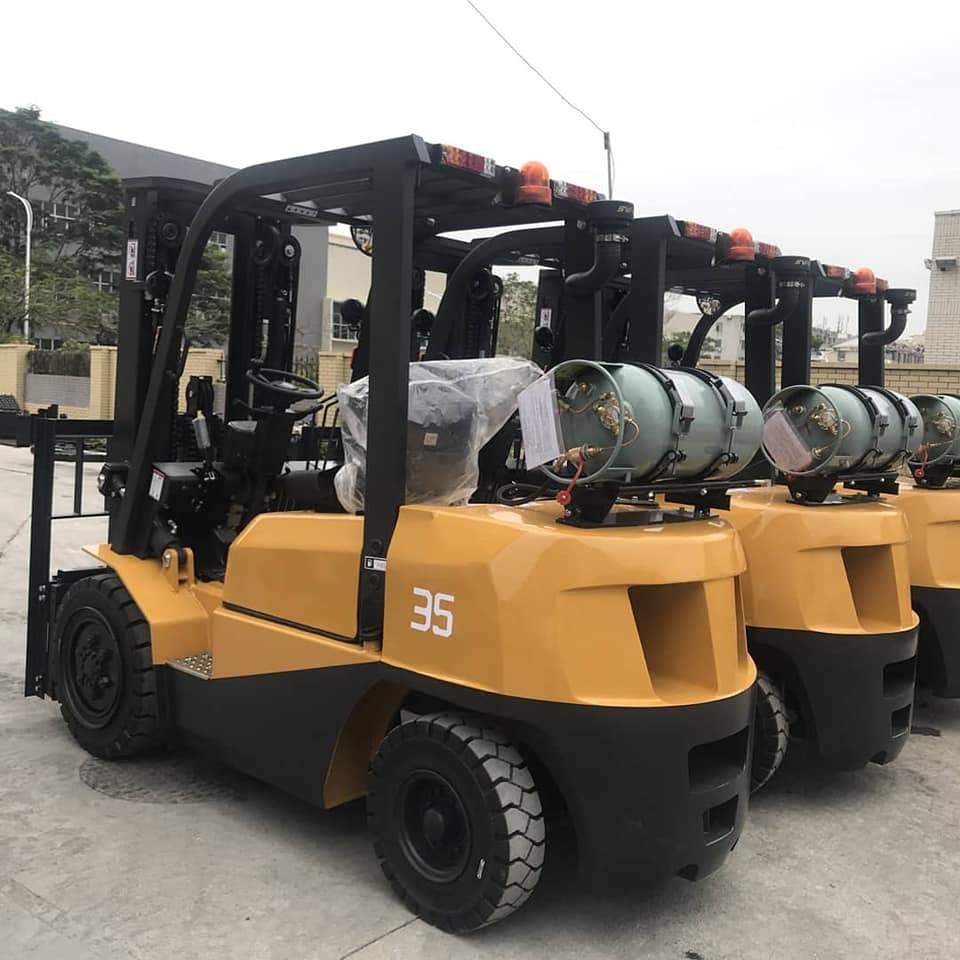

SUNBR forklift 3 ton Dual Fuel Gasoline LP Gas Forklift

Item No.:FG

2 ton 2.5 ton 3 ton 3.5 ton LPG forklift

INQUIRY PDF Format

Description Item specifics


The specification of 3 ton LPG forklift
Model				FG30
Power Type				LPG & Gasoline
Rated Capacity			kg	3000
Load Centre			mm	500
Lift Height			mm	3000
Fork Size		L×W×T	mm	1070×125×45
Mast Tilt Angle		F/R	Deg	6°/12°
Front Overhang (Wheel center to fork face)			mm	480
Ground Clearance(Bottom of mast)			mm	140
Overall Dimension		Length to face of fork(Without fork)	mm	2730
		Overall Width	mm	1225
		Mast Lowered Height	mm	2115
		Mast Extended Height(With backrest)	mm	4150
		Overhead Guard Height	mm	2090
Turning Radius (outside)			mm	2440
Speed		Travel (Empty load)	km/h	20
Speed		Lifting (Full load)	mm/s	510
Max.Gradeability (No load/Full load)			%	20
Tire		Front	mm	28×9-15-12PR
Tire		Rear	mm	6.50-10-10PR
Wheelbase			mm	1700
Service weight			kg	4300
Battery	Voltage/Capacity		V/Ah	12/80
Engine	Model			K25
	Manufacture			GCT (NISSAN)
	Rated output/r.p.m.		kw	35.6/2100
	Rated torque/r.p.m.		N·m	176.5/1600
	No.of Cylinder			4
	Bore×Stroke		mm	89×100
	Displacement		cc	2488
	Fuel Tank Capacity		L	60
Transmission	Type			Hydraulic
Transmission	Stage	FWD/RVS		1/1
