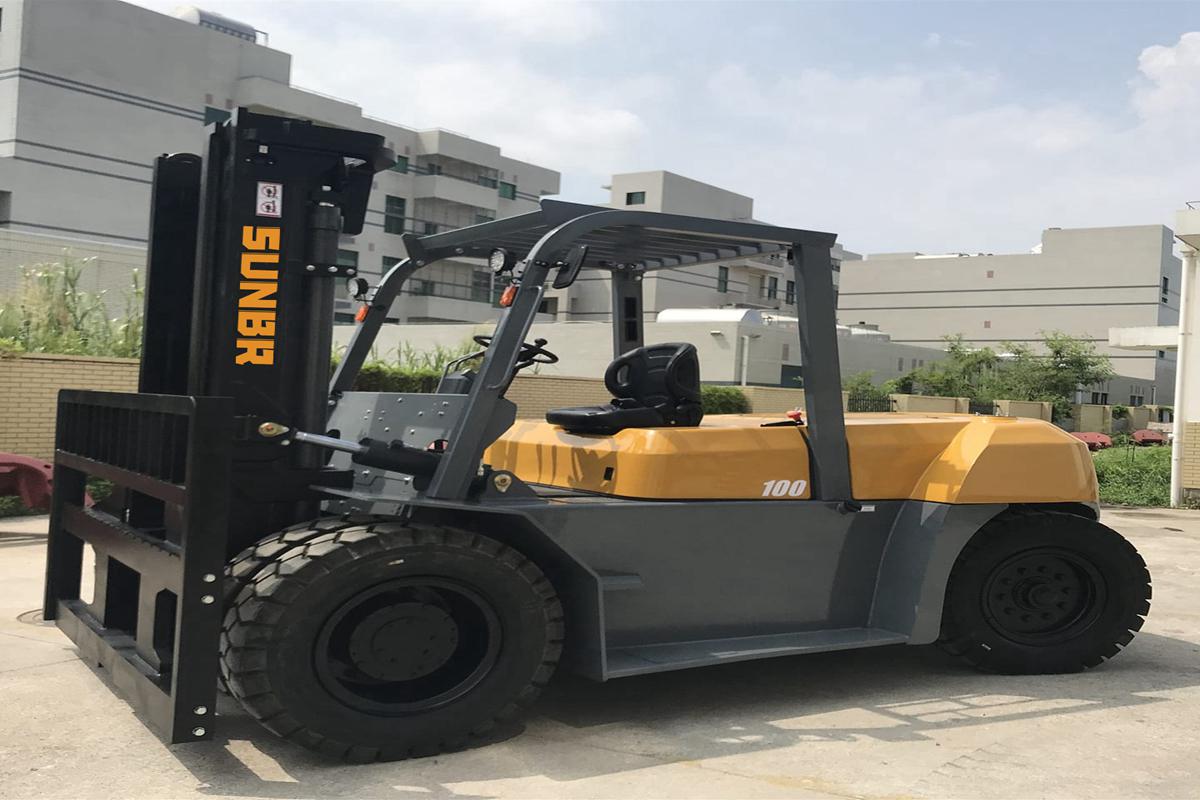

10Tons Diesel Forklift
Item No.:FD100
Description
Item specifics
| General | 1 | Model | FD100 | FD120 | |||
| 2 | Power Type | Diesel | Diesel | ||||
| 3 | Rated Capacity | kg | 10000 | 12000 | |||
| 4 | Load Centre | mm | 600 | 600 | |||
| Characteristic&Dimension | 5 | Lift Height | mm | 3000 | 3000 | ||
| 6 | Fork Size | L×W×T | mm | 1520×175×85 | 1520×180×100 | ||
| 7 | Mast Tilt Angle | F/R | Deg | 6°/12° | 6°/12° | ||
| 8 | Fork Overhang (Wheel center to fork face) | mm | 739 | 754 | |||
| 9 | Ground Clearance（Bottom of mast） | mm | 230 | 230 | |||
| 10 | Overall Dimension | Length to face of fork(Without fork) | mm | 4280 | 4685 | ||
| 11 | Overall Width | mm | 2170 | 2200 | |||
| 12 | Mast Lowered Height | mm | 2830 | 3080 | |||
| 13 | Mast Extended Height(With backrest) | mm | 4335 | 4500 | |||
| 14 | Overhead Guard Height | mm | 2510 | 2540 | |||
| 15 | Turning Radius (outside) | mm | 3970 | 4700 | |||
| Performance | 16 | Speed | Travel (Full load) | km/h | 30 | 30 | |
| 17 | Lifting (Full load) | mm/s | 270 | 270 | |||
| 18 | Max.Gradeability | % | 20 | 20 | |||
| Chassis | 19 | Tyre | Front | mm | 9.00-20-14PR | 11.00-20-16PR | |
| 20 | Rear | mm | 9.00-20-14PR | 9.00-20-14 | |||
| 21 | Wheelbase | mm | 2800 | 3200 | |||
| 22 | Self weight | kg | 13100 | 14500 | |||
| Power&Transmission | 23 | Battery | Voltage/Capacity | V/Ah | (12/80) x 2 | (12/80) x 2 | |
| 24 | Engine | Model | 6BG1-QC02 | QSB4.5-C130 | |||
| 25 | Manufacture | ISUZU | CUMMINS | ||||
| 26 | Rated output/r.p.m. | kw | 82.4/2000 | 97/2200 | |||
| 27 | Rated torque/r.p.m. | N·m | 416/1600 | 622/1500 | |||
| 28 | No.of Cylinder | 6 | 6 | ||||
| 29 | Bore×Stroke | mm | 105×125 | 107×124 | |||
| 30 | Displacement | cc | 6494 | 4500 | |||
| 31 | Fuel Tank Capacity | L | 135 | 150 | |||
| 32 | Transmission | Type | Hydraulic | Hydraulic | |||
| 33 | Stage | FWD/RVS | 2/2 | 2/2 | |||
