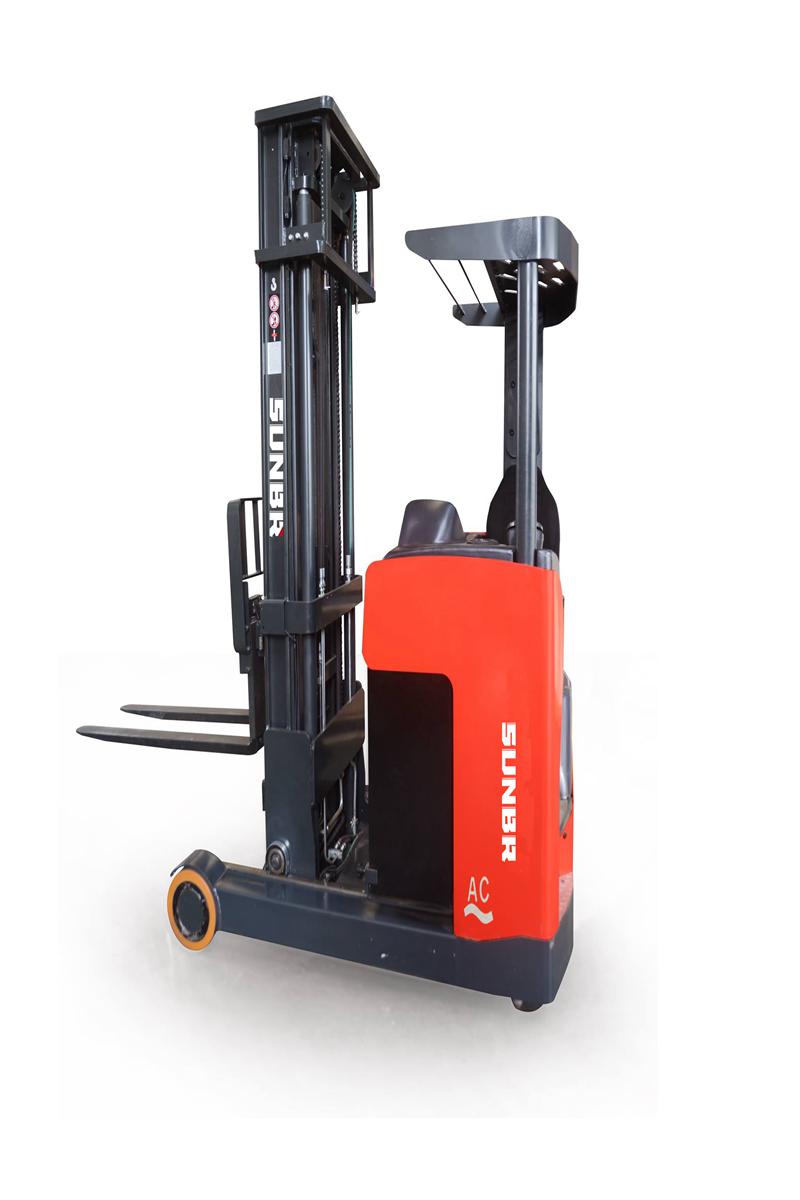

FRB 1-2Tons Stand on Reach truck
Model | FRB10 | FRB15 | FRB20 | |||
Performance | Maximum load capacity | kg | 1000 | 1500 | 2000 | |
with load center at | Q | mm | 500 | 500 | 500 | |
Maximum lifting height | H3 | mm | 1600 | 1600 | 1600 | |
Reach length | E | mm | 510 | 510 | 550 | |
Tiltiing angle (up/down) | S | 3/5 | 3/5 | 3/5 | ||
Travel speed (without load) | km/h | 5 | 5 | 5 | ||
Travel speed (with load) | km/h | 5 | 5 | 5 | ||
Lifting speed (without load) | mm/s | 180 | 180 | 180 | ||
Lifting speed (with load) | mm/s | 100 | 100 | 100 | ||
Ascend slope ability (without load ) | % | 8 | 8 | 8 | ||
Ascend slope ability (with load ) | % | 5 | 5 | 5 | ||
Weight (without battery) | kg | 2050 | 2080 | 2140 | ||
Dimensions | Overall length of frame(mast no reach) | L | mm | 1780 | 1780 | 1880 |
Overall length (mast no reach) | L1 | mm | 2350 | 2350 | 2410 | |
Overall length (mast reach) | L2 | mm | 2860 | 2860 | 2980 | |
Overall width of frame | B | mm | 1035 | 1035 | 1035 | |
Overhead guard height | mm | 2185 | 2180 | 2180 | ||
Mast lowered height | H1 | mm | 2200 | 2200 | 2200 | |
Max height(mast lifted with backrest) | H2 | mm | 2650 | 2650 | 2650 | |
Wheelbase | Y | mm | 1450 | 1450 | 1550 | |
Fork length | mm | 1070 | 1070 | 1070 | ||
Fork width | mm | 100 | 100 | 120 | ||
Fork lowered height | S | mm | 35 | 35 | 40 | |
Fork spread width | mm | 210-716 | 210-716 | 250-716 | ||
Min frounf height | mm | 55 | 55 | 55 | ||
Turning radius | Wa | mm | 1710 | 1710 | 1810 | |
Min intersecting aisle width | Asts | mm | 2610 | 2610 | 2680 | |
Tire | Front wheel | mm | 210*75 | 210*75 | 210*75 | |
Drive wheel | mm | 230*75 | 230*75 | 230*75 | ||
Caster wheel | mm | 130*55 | 130*55 | 130*55 | ||
Wheel material | polyurethane | |||||
Electrical components | Drive motor type | AC series motor | ||||
Rated output | kw | 1.5 | 1.5 | 1.5 | ||
Hoist motor type | DC series motor | |||||
Rated output | kw | 3 | 3 | 3 | ||
battery | Voltage | V | 24 | 24 | 24 | |
Capacity | AH | 270 | ||||
Weight | kg | 260 | ||||
Mast Type | Max.Fork height | Mast Lowered | Mast Extended | Free Lift |
Simplex Mast (2stage) | 2000 | 1475 | 3050 | ／ |
2500 | 1725 | 3550 | ／ | |
3000 | 1975 | 4050 | ／ | |
3500 | 2225 | 4550 | ／ | |
4000 | 2475 | 5050 | ／ | |
Triplex Mast（3stage Ful Free Lift | 4500 | 2015 | 5550 | 1530 |
5000 | 2240 | 6050 | 1710 | |
5500 | 2400 | 6550 | 1860 | |
6000 | 2579 | 7050 | 2030 |
