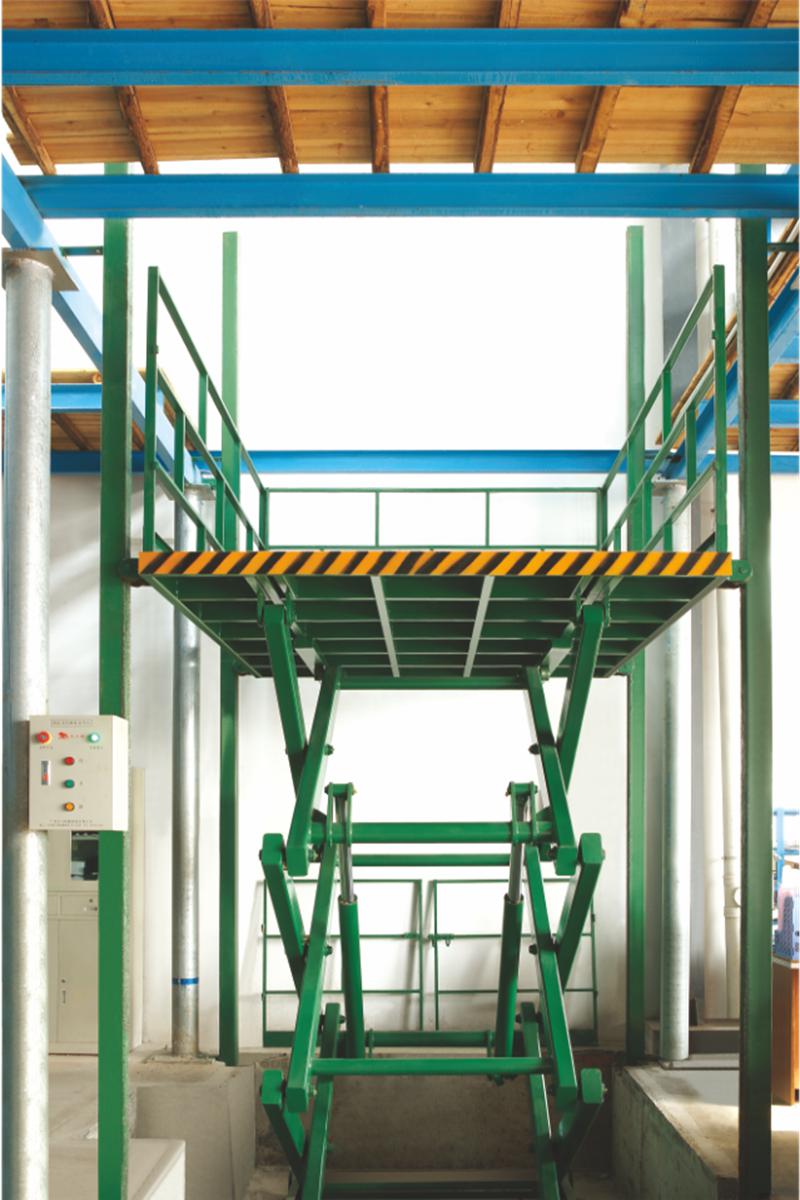

SJG Stationary scissor lift
Item No.:SJG
1-6ton capacity hydraulic scissor car lift electric scissor lift tables ,Customized
Description
Item specifics
Stationary Scissor lift is driven by a hydraulic system, working stable and safely with large load capacity.
Remote control and multi-control points on different floors could be realized. Lifting, Stop, and Descending could be realized at each control point according to customers' requirement.
The control panels are available both on the designated floor and on the platform.
Stationary scissor lift custom made by client local needs, Technical parameters for reference:
| Model | Lifting height (m) | Min. height (mm) | Loading capacity (kg) | Table size (m) | Power (kw) | Rising time (s) |
SJG0.5-4.5 | 4.5 | 750 | 500 | 2*1 | 2.2 | 77 |
SJG1.0-4.5 | 4.5 | 850 | 1000 | 2*1.5 | 3.0 | 80 |
SJG2.0-4.5 | 4.5 | 900 | 2000 | 2.2*1.5 | 2.2 | 90 |
SJG1.0-7.5 | 7.5 | 990 | 1000 | 2.2*1.8 | 3.0 | 100 |
SJG2.0-7.5 | 7.5 | 1065 | 2000 | 2.4*2.4 | 4.0 | 105 |
SJG2.0-1.8 | 1.8 | 700 | 2000 | 2.5*2 | 3.0 | 50 |
SJG5.0-1.8 | 1.8 | 960 | 5000 | 3.5*2.5 | 4.0 | 88 |
Lift height & Bearing capacity & Table size all can be customized. | ||||||
