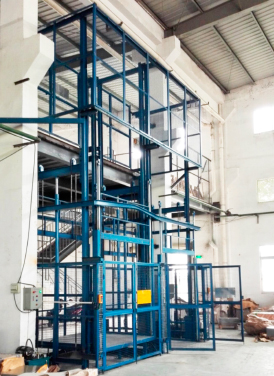

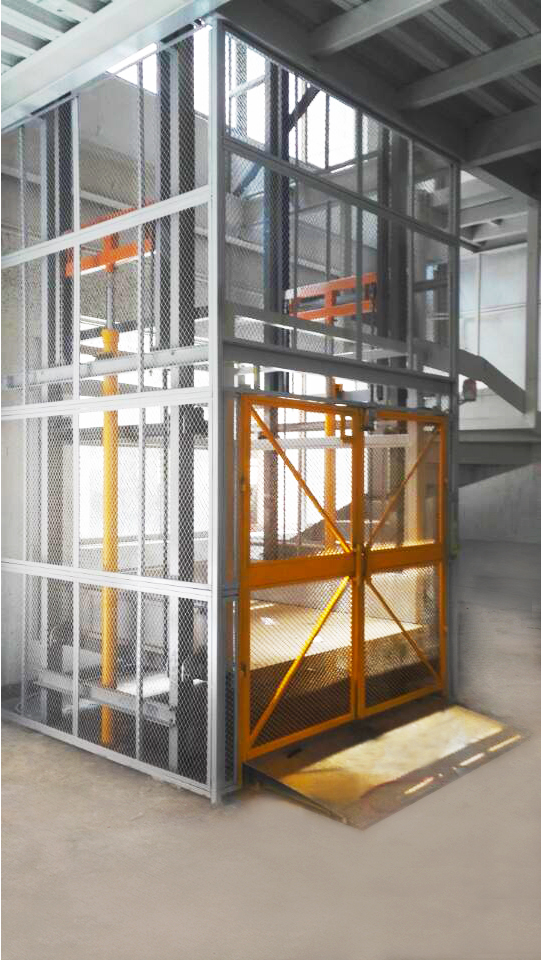

SJT Chain hydraulic lift table
Item No.:
Description
Item specifics
This Straight top-heavy lifting work platform is for cargo lifting,the hydraulic cylinder as the main driving
force,through the heavy chain and wire rope transmission,to ensure the absolute safety of machine operation.
| Model | Rated load(kg) | Lifting height (mm) | Platform size (mm) | Carriage height (mm) | Lifting speed (m/min) | Motor Power(kw) |
| SJT1-3 | 1000 | 3000 | 2000×2000 | 2000 | 6.5 | 2.2 |
| SJT2-3 | 2000 | 3000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-4 | 1000 | 4000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-4 | 2000 | 4000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-5 | 1000 | 5000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-5 | 2000 | 5000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-6 | 1000 | 6000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-6 | 2000 | 6000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-7 | 1000 | 7000 | 2000×2000 | 2000 | 6.5 | 3.7 |
| SJT2-7 | 2000 | 7000 | 2000×2000 | 2000 | 6 | 3.7 |
| SJT1-8 | 1000 | 8000 | 2000×2000 | 2000 | 6.5 | 5.5 |
| SJT2-8 | 2000 | 8000 | 2000×2000 | 2000 | 6 | 5.5 |
| SJT1-9 | 1000 | 9000 | 2000×2000 | 2000 | 6.5 | 5.5 |
| SJT2-9 | 2000 | 9000 | 2000×2000 | 2000 | 6 | 5.5 |
| SJT1-10 | 1000 | 10000 | 2000×2000 | 2000 | 6.5 | 5.5 |
| SJT1-12 | 1000 | 12000 | 2000×2000 | 2000 | 6.5 | 5.5 |
