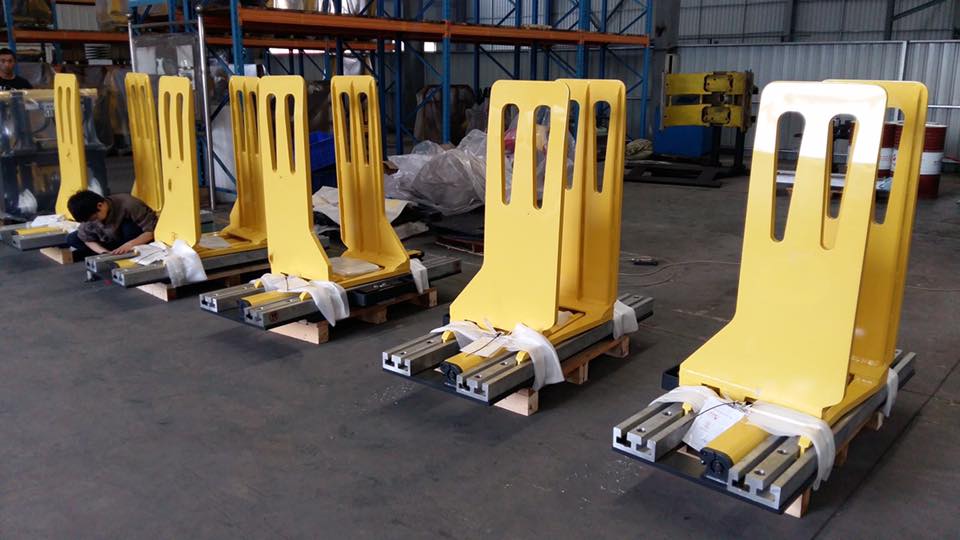

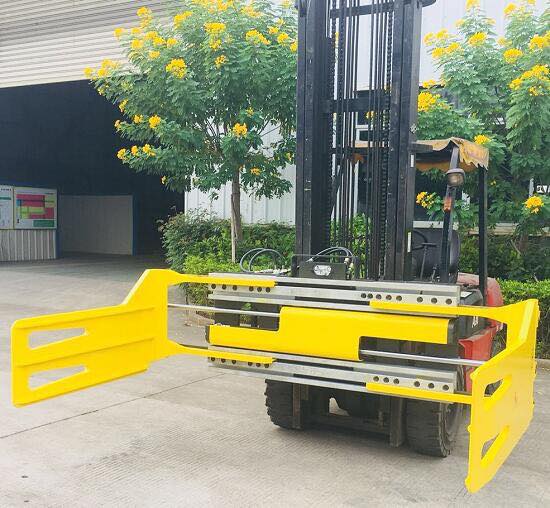

Bale Clamp For Forklift With Different Lift Capacity
Item No.:
Bale clamp
Description
Item specifics
| Capacity@ Load Center | Catalog Order No. | Mounting Class | Opening Range | Arm Height | Arm Length | Frame Width |
| Kg@mm | (mm) | A(mm) | B(mm) | C(mm) | ||
| 1900@500 | RJ18ST-A3 | Ⅱ | 440-1720 | 418 | 1190 | 1040 |
| 2700@500 | RJ25ST-B1 | Ⅲ | 550-1840 | 460 | 1200 | 1010 |
| 2700@500 | RJ25ST-B5 | Ⅲ | 535-1905 | 460 | 1200 | 1100 |
Overall Height | Minimum Truck | Weight | Effective Thickness | Vertical Center of Gravity | Horizontal Center of Gravity | Available Forklift |
| (mm) | (mm) | (kg) | ET | CGV (mm) | CGH (mm) | (t) |
| 647 | 825 | 520 | 117 | 177 | 328 | 1-2.5t |
| 750 | 1000 | 650 | 132 | 228 | 318 | 3-4.5t |
| 750 | 1000 | 670 | 132 | 232 | 313 | 3-4.5t |
